Description

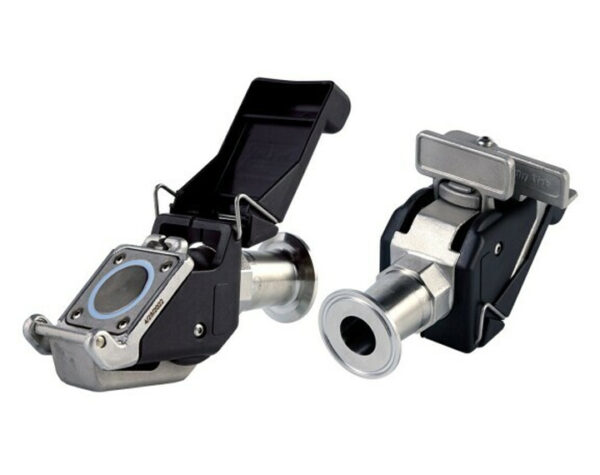

DryLink Sanitary Dry Disconnect
DryLink fittings feature a butterfly valve, rather than a poppet, plunger, or ball valve.
DryLink fittings do not have any Interior cavities, voids or springs which can promote the growth of bacteria through trapped media. This makes DryLink a true Sanitary dry disconnect fitting.
DryLink is Our Most Effective Dry Disconnect Coupling
DryLink is the market leader of the dry break range of couplings and exclusive to Action Sealtite. It’s unique patented design means that the flow is controlled by one single handle, which is attached only to the coupler. The handle operates the adaptor valve as well as the coupler making it very quick to secure and easy to use. More importantly, it is the only true non-spill coupling available in the world.
“Independent, third party testing by Factory Mutual Research has verified that the 2” (DN 50) size Dry Link hose coupling assembly had only 1 to 2 drops of total cumulative leakage after a total of 10 connect/disconnect cycles. No other product comes close!” From DryLink website: http://www.drylink.com/faq.html
Where can you use DryLink?
DryLink can be used in any application where a dry disconnection is required but is most commonly used in industries where fluids are hazardous, toxic, corrosive or flammable or if the liquid is of a considerably high value. Typical industries include chemical, pharmaceutical, cosmetics, printing, paints, soap, food and drink, hygienic, nuclear and microelectronics. Dry Link can be used on IBCs.
Why use DryLink?
It is the most superior product available on the market today and this is due to the unique design:
- Servicing of the fittings is easy. All that is required is a pin pusher, a hammer and an allen key. Servicing can be done on-site and in situ, saving potentially thousands in downtime for repair and or maintenance. DryLink spares are also available direct from us
- Diversity – the range is almost infinite, with many options for materials and an option for polishing, your Dry Link coupling really can be made bespoke to your application
- Safety – when connected and the valves are open it cannot be disconnected and when disconnected the valves cannot be opened. In either scenario, hazardous or valuable fluids cannot be accidentally lost
- Double butterfly valve, flow is not comprised – saves time and increases productivity
Materials Options
- All wetted parts are Type 316 stainless steel
- Dry Link can also be constructed with Alloy 20 (Carpenter 20) specifically designed coupling to be used with sulphuric acid transfers commonly used in a wide range of industries particularly paper mills
- Hastelloy C wetted parts for services where severe corrosives are a concern
DryLink Seals
All internal seals are spring-energized PTFE as standard
Further Seals Options
- Moulded Viton (FKM)
- EPDM
- Chemraz/Kalrez (FFKM)
End Connections Options
- FNPT
- British Standard (BSPP)
- Flanged
- Triclover
DryLink Unit Sizes
Couplings are offered in sizes 1”, 1.5”, 2”, 3” and 4” (DN 25, 40, 50, 75, and 100).
We also offer custom ½” and ¾” sizes.
Pressure & Temperature
Coupling ratings vary with size and seal materials. There are so many options; it’s best to call us with your requirements so we can guide you through what is available. Please call the team today on +44 (0)1235 512500
What are Keyed Couplings?
Dry Link “keyed” couplings are used in batch process plants and manifolds for preventing accidental cross-contamination of chemicals.
Dry Link is a premium product for special applications.
If you can accept a very minimal ‘smear’ type of fluid loss, and your budget would be suited to another type of dry break, you could consider Banjo DryMate, Parker 71 Series, or Maxi-Dry Dry Disconnect fittings. For full technical information, download our spec sheets below.
To discuss your options in full with an expert from our team, please call on +44 (0)1235 512500
