Description

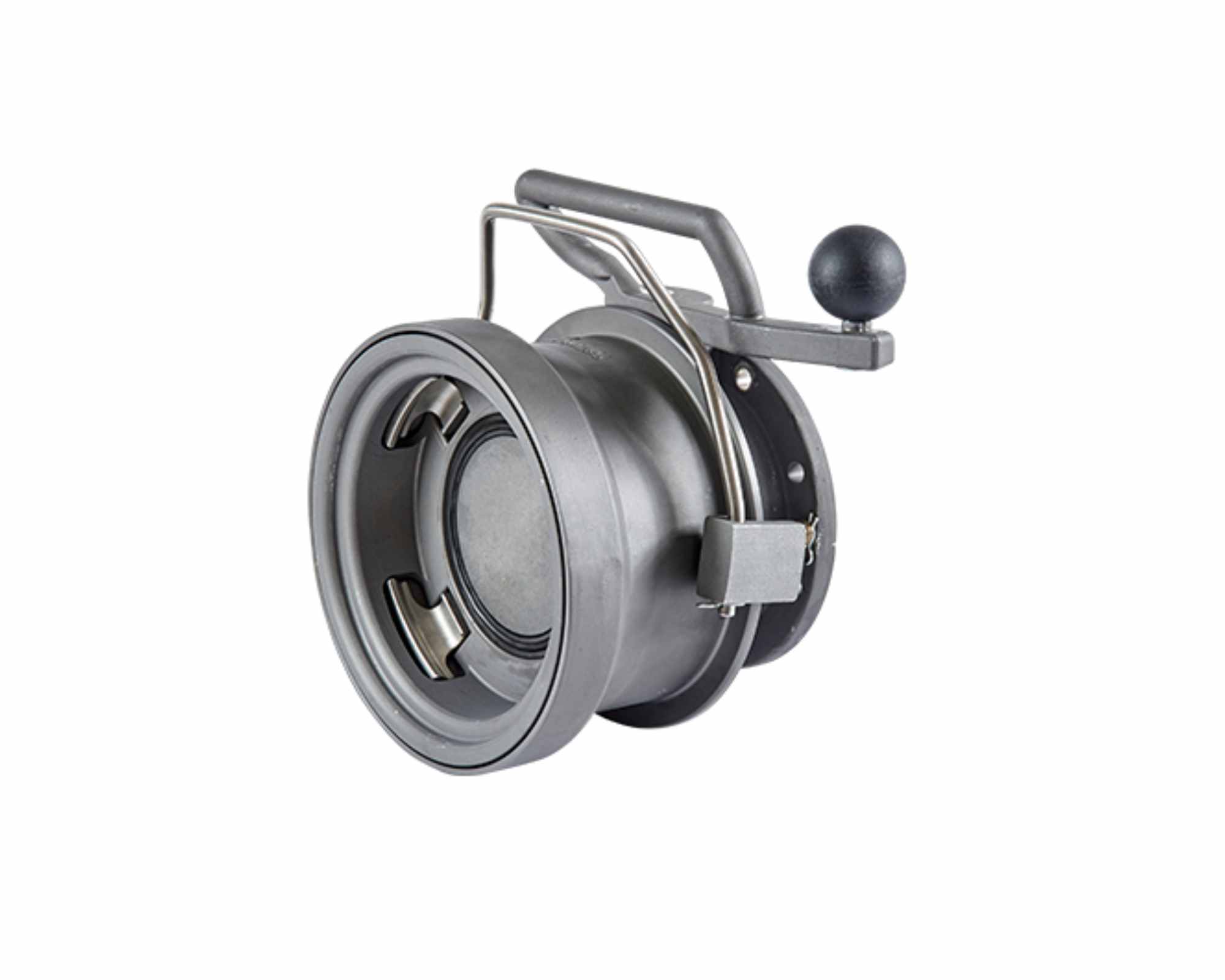

We assembled our global team of expert engineers to rethink how API couplers could be safer, more efficient, and easier to use in the most demanding terminal environments. Now, real change is here – meet the J0453 API Coupler, a revolutionary product that achieves.
The Emco Wheaton range of API couplers are designed to incorporate maximum safety, while ensuring low-pressure drop, and hence high flow, and combining easy maintenance with a long service life. Every coupler in Emco Wheaton’s range meets the recognised international standards and industry codes of practice.
FEATURES & BENEFITS
■ Up to 50% less maintenance downtime
■ Improved environmental and operator safety with an optional integrated pump to further reduce disconnect leaks
■ Greatly reduced weight with improved ergonomics
■ Easier sealing maximises safety of complex loading applications
TECHNICAL SPECIFICATION
■ Ergonomic handle
■ All new latch design
■ Ultralight body
■ Proven lever design
■ Working pressure increased to 16 bar, with test pressure of 25 bar
■ Improved ergonomics, ensuring the operator experiences an easier coupling operation
■ Up to 50% quicker service times
■ Lowest weight for an API Coupler at just 7.1 kg
■ Get rid of disconnect spills
■ Smoother coupling operation thanks to low engagement force, while providing a secure coupling
SPECIFICATION
■ Dimensions: 227x270x178mm
■ Weight: 7.10 kg
■ Max. Working Pressure: 16 bar (230 psi)
■ Product Test Pressure: 25 bar (360 psi)
■ Design Standard: API RP 1004
■ Mounting: 4” (100mm) TTMA Flange
■ Handle Length: 181mm
■ Options: Pump, sensor, product ID sensor and handle options
VARIANTS
■ 4” API Coupler, Viton (FKM)
■ 4” API Coupler, Buna (NBR)
■ 4” API Coupler, Low Temp, Viton (GFLT)
■ 4” API Coupler, Kalrez 6375
■ 4” API Coupler, Chemraz 505
■ 4” (100mm) TTMA Flange
Other variants available on request.
