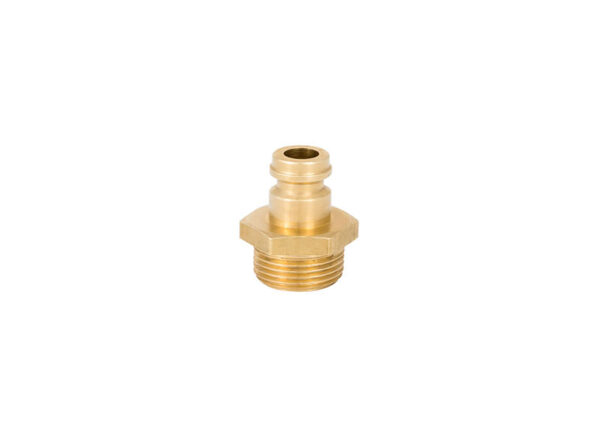

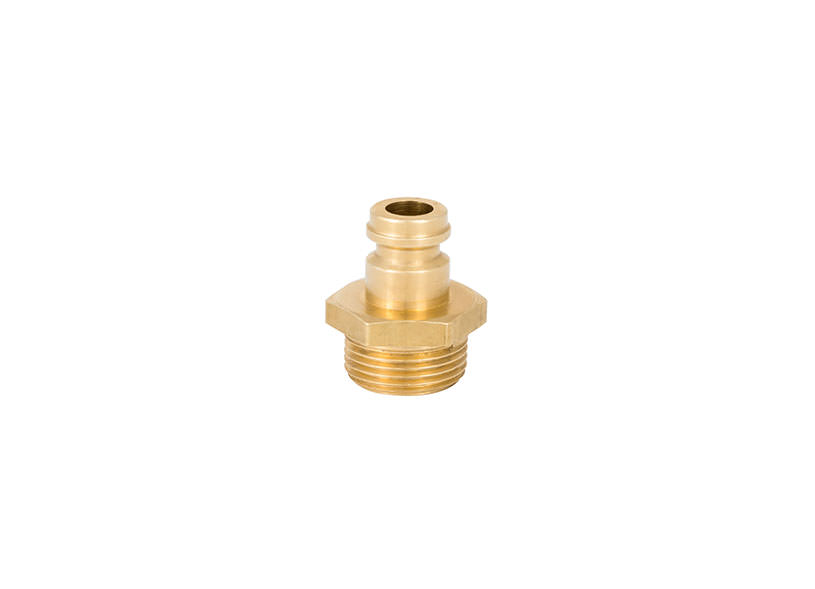

TST Series 23 Nipple

Series 23 Air Line Fitting

Size

Thread Type

Connection

Material

Pressure

Seal Type

Series Part

Reliable

Economical

Interchangeable

Description

Temperature Range -20degC – +100degC | Working Pressure 0 – 35bar (0 -500 PSI) | Flow Capacity NW – 5.4

Special Features

Interchangeablity Rectus 23, Forster, CJEN 310, US MIL SPECC 4109 14/4″, Hansen 3000, Parker PBF 1/4″, TST023

Technical Table

Size	1/4", 3/8", 10mm
Thread Type	Hose Tail, Female, Male
Connection	Male Nipple by Female Thread, Male Nipple by Hose Tail, Male Nipple by Male Thread
Material	Steel Nickel Plated
Pressure	500
Seal Type	Buna
Series Part	23 Series
Application	Air
Specification	Size: 1/4", Size: 10mm, Size: 3/8"

Downloads

TST Series 23 Download

Further Information
